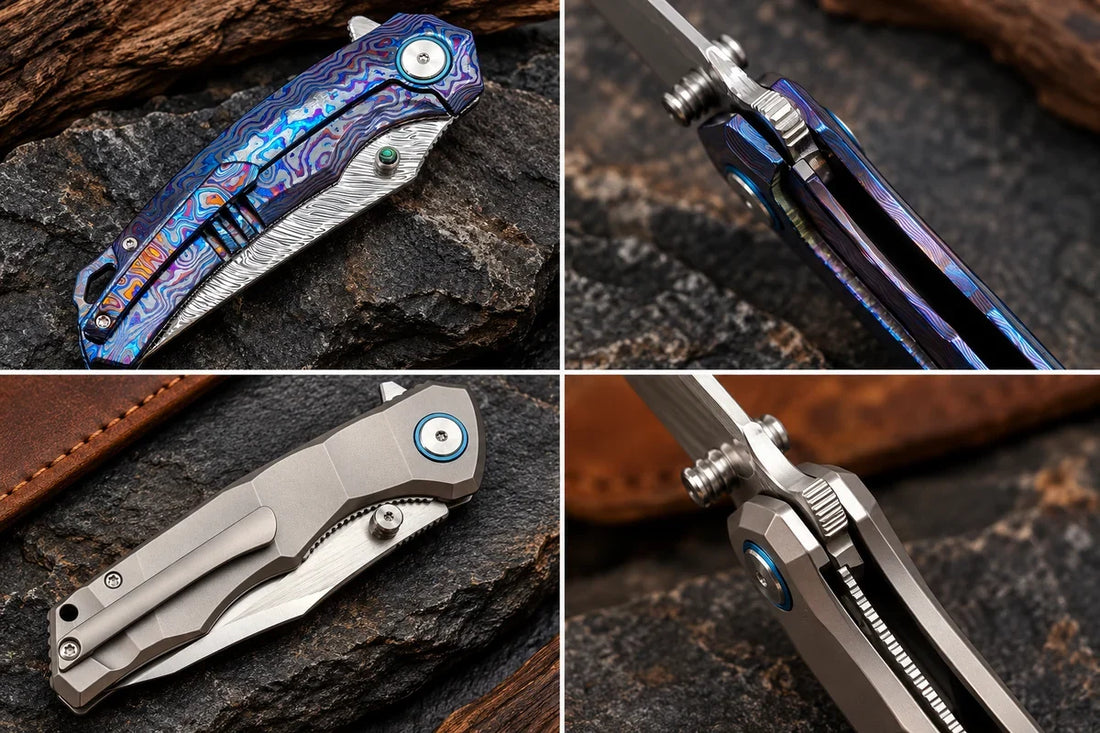

Frame Lock vs. Liner Lock comparison featuring VORIXN KB138 and KB014 folding knives, showing handle designs and close-up views of their locking mechanisms.

Frame Lock vs. Liner Lock: Key Differences Explained

When choosing a folding knife, blade steel and handle materials often get most of the attention. But the locking mechanism is just as important to understanding how a knife is designed and how it feels during everyday use.

Two of the most common locking mechanisms found on modern folding knives are the frame lock and the liner lock.

At first glance, they may appear almost identical. Both use a spring-like metal component to hold the blade in its open position. However, one important structural difference separates them.

A frame lock uses part of the handle frame itself, while a liner lock relies on a separate metal liner inside the handle.

So which design is better for everyday carry (EDC)? Let's take a closer look.

1. What Is a Frame Lock?

A frame lock, sometimes called an integral lock or Reeve Integral Lock, uses a portion of the knife's metal handle frame as the locking mechanism.

When the blade is fully opened, a section of the handle frame moves inward and engages the blade tang, the portion of the blade located near the pivot.

This engagement helps prevent the blade from folding closed during normal cutting tasks.

Frame locks are commonly found on titanium and stainless steel folding knives, particularly models designed with an emphasis on durable metal construction and precise mechanical fit.

Key characteristics of a frame lock:

  • The locking bar is integrated into the metal handle frame.
  • The lock is generally visible from the outside of the handle.
  • Titanium and stainless steel are common frame materials.
  • The design does not require a separate locking liner on the lock side.
  • The lockbar and blade tang must be carefully fitted for reliable engagement.

Frame locks are popular among knife enthusiasts who appreciate their relatively straightforward construction and mechanical design.

For an example of a premium frame-lock design, explore the VORIXN KB138 Seadragon, featuring a Zircuti handle and Damascus blade.

VORIXN KB138 Seadragon folding knife closed on a stone surface, showing its patterned Zircuti handle and pocket clip.
Close-up of the VORIXN KB138 Seadragon frame lock engaging the blade tang beside the colorful Zircuti handle.

2. What Is a Liner Lock?

A liner lock uses a spring-like metal liner positioned inside the knife handle.

When the blade opens fully, part of the liner moves inward and engages the blade tang, holding the blade open.

Unlike a frame lock, the locking component is separate from the outer handle scales.

This allows designers to use a wide range of exterior handle materials, including G10, Micarta, carbon fiber, wood, and other suitable materials.

Key characteristics of a liner lock:

  • The locking bar is part of an internal metal liner.
  • The lock sits beneath or inside the outer handle scales.
  • It supports a wide variety of handle materials and designs.
  • It is commonly used in everyday carry folding knives.
  • The quality of the liner, blade tang, and overall fitting influences lock performance.

Liner locks have remained popular because of their versatility and compatibility with many different folding knife designs.

VORIXN liner lock folding knife closed on a stone surface, showing its gray outer handle and pocket clip.
Close-up of a VORIXN liner lock folding knife with the blade open, showing the separate internal locking liner beneath the gray handle.

3. Frame Lock vs. Liner Lock: Main Differences

Although the two mechanisms work on a similar principle, their construction creates some important differences.

Feature Frame Lock Liner Lock
Locking component Part of the metal handle frame Separate internal metal liner
Lock location Integrated into the handle scale Inside the handle
Common materials Titanium or stainless steel Steel or other suitable metal liners, with various outer handle materials
Lock visibility Usually visible externally Usually recessed inside the handle
Design flexibility Typically suited to metal-frame designs Supports a wider variety of handle-scale materials
Weight Depends on overall construction Depends on overall construction
Lock performance Depends on engineering, materials, and fit Depends on engineering, materials, and fit
Typical appeal Integrated metal construction Handle-material versatility

The most important distinction is not that one mechanism is automatically superior. It is how the locking component is incorporated into the handle.

4. Is a Frame Lock Stronger Than a Liner Lock?

This is one of the most frequently discussed questions among folding knife enthusiasts.

Frame locks commonly use a thicker locking bar than traditional liner locks. This can provide a mechanical advantage in certain designs.

However, thickness alone does not determine the strength or reliability of a locking mechanism.

Several factors matter, including:

  • Lockbar geometry and engagement
  • Materials and heat treatment
  • Contact between the lock face and blade tang
  • Manufacturing tolerances
  • Wear, contamination, and maintenance
  • The overall design of the knife

A carefully engineered liner lock can perform very well, while a poorly fitted frame lock may develop problems regardless of its thicker construction.

Therefore, neither locking mechanism should be considered universally stronger or safer based on its name alone.

For normal everyday cutting tasks, a properly designed and maintained example of either mechanism can be a practical choice.

5. Which Lock Is More Comfortable for Everyday Carry?

Comfort depends on more than the locking mechanism.

Handle shape, overall weight, surface texture, pocket clip position, and the way the knife fits the user's hand can be equally important.

Frame Lock: Integrated Metal Construction

A frame lock may appeal to people who prefer the appearance and feel of an all-metal folding knife.

Titanium frame locks are particularly popular in premium EDC designs because titanium offers a useful balance of strength, corrosion resistance, and relatively low weight.

However, depending on the handle geometry, grip pressure may influence the lockbar. The design must account for this interaction.

Liner Lock: Greater Handle Material Flexibility

Liner locks give designers more freedom to choose handle-scale materials and textures.

Materials such as G10 and Micarta can offer different grip characteristics compared with bare metal handles.

Liner-lock knives may also be designed with slim profiles and lightweight construction, although these qualities are not exclusive to liner locks.

The better choice is the knife that fits your intended tasks, hand, and carrying preferences, not simply the one with a particular lock type.

6. Which Lock Is Easier to Maintain?

Both mechanisms benefit from routine inspection and appropriate maintenance.

Dust, debris, excessive lubrication, and wear can affect the movement or engagement of a locking component.

Because frame locks typically have an exposed locking bar, parts of the mechanism may be easier to inspect visually.

Liner locks place the locking component within the handle, although its engagement can generally still be inspected when the blade is open.

For either design:

  • Keep the pivot and locking surfaces free from accumulated dirt.
  • Follow the manufacturer's cleaning and lubrication recommendations.
  • Inspect the knife for unusual blade movement or inconsistent lock engagement.
  • Avoid modifying the lockbar or lock-contact surfaces.
  • Stop using the knife if the lock appears damaged or unreliable.

Important: A folding knife lock is not a substitute for safe handling. Never rely on any folding knife lock to withstand unintended closing forces, and always keep fingers clear of the blade's closing path.

7. Frame Lock or Liner Lock: Which Should You Choose?

Choose a frame lock if you appreciate:

  • Integrated metal-handle construction
  • The appearance and feel of titanium or stainless steel
  • An exposed, visually accessible locking mechanism
  • A streamlined design with fewer separate locking components

Consider a liner lock if you value:

  • A wider selection of handle materials
  • Different grip textures and handle finishes
  • Flexible design and construction options
  • A proven locking concept used across many folding knife styles

Neither choice is inherently right for everyone.

A folding knife should be evaluated as a complete product, including blade steel, handle ergonomics, pivot construction, lock engagement, build quality, and intended everyday use.

8. Frequently Asked Questions

What is the main difference between a frame lock and a liner lock?

A frame lock uses part of the metal handle frame to engage the blade tang. A liner lock uses a separate metal liner inside the handle to perform the same basic function.

Is a frame lock always stronger than a liner lock?

No. Frame locks often use thicker locking bars, but actual lock performance depends on construction, geometry, materials, and manufacturing quality.

Are liner locks suitable for everyday carry?

Yes. Properly designed liner locks are widely used in EDC folding knives and can provide reliable blade retention during normal cutting tasks.

Are all titanium folding knives frame locks?

No. Titanium is a handle material, not a locking mechanism. A titanium-handled folding knife may use a frame lock, liner lock, or another compatible locking design.

Does a frame lock make a folding knife heavier?

Not necessarily. Overall weight depends on handle dimensions, material thickness, blade construction, internal components, and other design choices.

Can either locking mechanism wear out?

Yes. Both are mechanical systems, and their performance can change with wear, damage, contamination, or improper maintenance. Regular inspection is important.

Final Thoughts

Frame locks and liner locks share a similar operating principle, but they achieve it through different handle constructions.

A frame lock integrates the locking component into the metal frame, while a liner lock uses a separate internal metal liner.

Both have established places in modern folding knife design, and both can perform well when properly engineered and maintained.

Understanding these differences helps collectors and EDC enthusiasts make more informed decisions based on practical needs, materials, and personal preferences.

At VORIXN, we appreciate the engineering and craftsmanship behind folding knives, from locking mechanisms and precision pivots to blade steels such as M390, Swedish Powder Damascus, forged Damascus, and other materials.

Explore our collection of folding knives and discover the details that make each design distinctive.
